DPP-x57#
The documentation of our iLCD JPro series can be downloaded as a PDF file here:
iLCD JPro Documentation as PDF
To jump to downloads click here:
LCD#
Item |
DPP-57 |
DPP-T57 |
DPP-C57 |
|---|---|---|---|
Screen Size |
5.7 inch |
||
Display Resolution |
640 x RGB x 480 dots |
||
Dot Pitch |
0.0588 (H) x 0.1764 (V) mm |
||
Active Area |
112.896 (H) x 84.672 (V) mm |
||
Display Mode |
Normally white / Transmissive |
||
Pixel Arrangement |
RGB-Strip |
||
Display Color |
262 k (Display) / 64k (Controller) |
||
Backlight 1) |
White LED, typical lifetime 20.000 hours |
||
Brightness typ. |
350 cd/m2 |
300 cd/m2 |
350 cd/m2 |
Contrast ratio typ. |
500 |
||
Viewing Direction |
6 O’clock |
||
Touch Screen |
No |
4-wire resistive |
Projected capacitive |
Note:
1) Brightness decreased to be 50% of the initial value. Life time; mean time before failure at normal temperature (25°C) and normal humidity (60%)
Features#
Item |
DPP-x57 |
|---|---|
Connectivity |
USB 2.0 / 1 x RS232 3.3V / I2C / SPI / Ethernet with optional board |
Keyboard |
matrix scanning for up to 128 keys |
Outputs |
up to 16 outputs/LEDs (on/off/blink with user selectable blink frequency) 1) |
Inputs |
up to 16 1) |
ADC |
up to 4 (12 bit with range of 0 .. 3.3V) 1) |
DAC |
1(10 bit with range of 0 … 3.3V) |
Relays/PWM |
up to 2 1) |
Real-Time Clock |
Yes |
Flash Memory |
128 MByte for fonts, graphics, macros and text templates |
RAM |
8 MByte RAM for frame buffer and for screen saving |
iLCD controller |
DPC3090 operating at 120 MHz |
Note:
1) Fully customizable assignments of inputs, outputs, ADCs, Relays, PWMs and keyboard columns
Electrical Characteristics#
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|---|---|---|---|---|---|
Supply Voltage |
VCC |
4.75 |
5.0 |
5.25 |
V |
Input Voltage H Level 1)2) |
VIH |
2.4 |
- |
3.3 |
V |
Input voltage L Level 1) |
VIL |
0.0 |
- |
0.8 |
V |
Output current for digital outputs |
IOUT |
3.5 |
mA |
||
DAC output voltage |
VDAC |
0.0 |
- |
3.3 |
V |
DAC output current |
IDAC |
- |
- |
0.7 |
µA |
Vbatt current |
IVbatt |
1 |
µA |
||
Current consumption display switched off @ VCC = 5V 3) |
ICC |
120 / 1556) |
mA |
||
Current consumption display on, backlight off @ VCC = 5V 3)4) |
ICC |
270 / 3056) |
mA |
||
Current consumption with display+backlight @ VCC = 5V 3)4)5) |
ICC |
630 / 6656) |
mA |
Notes:
1) For digital inputs only
2) Digital inputs are 5-volt tolerant
3) No I/O ports active
4) All pixel set to white color
5) Backlight intensity 100%
6) DPP-C57
Circuit Board#

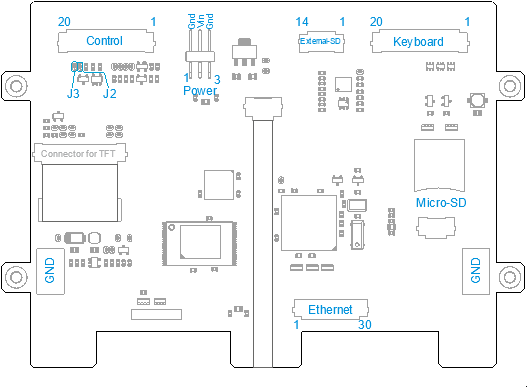

DPP-x57 connections (view from PCB side) See Pin Descriptions
Mechanical Specification#
DPP-x57 dimensions in mm
3D Model#
Downloads#
